Configure text splitting
This topic describes how to configure the text splitting files.
The text splitting files are held globally in the main DataStore. Any changes made to them will affect all users of the system.
Import
Text splitting is configured by importing a set of special files into the DataStore. Wincaps Q4 allows you to configure the text splitting differently for each language, hence you will need to import a set of splitting files for each language you plan to subtitle in. If you don't import any splitting files for a particular language, intelligent text splitting will not be enabled for that language.
Wincaps Q4 is supplied with a set of default text splitting files which are suitable for general English use. To customise the text splitting for other languages, you should take a copy of these files and modify them according to the guidelines detailed here.
Use the following steps to import and configure the text splitting files. This only needs to be done once for each language unless you choose to make subsequent changes to the files, at which point you will need to re-import them.
Prepare a suitable set of text splitting files for the target language and locate them in a folder that is accessible to Wincaps Q4. There are a set of basic English files in the Wincaps Quantum folder in Program Files.
Start Wincaps Q4, open a subtitle file and change the language to the language for which you want to configure text splitting
In the Toolbox->Job Info pane, click the Text Splitting->Import button:
Browse to the folder in step 1 and click OK. It is best to use the sample files even if you are not using English as the English words can be translated as required. The explanation for waht the text splitting files do, is here.

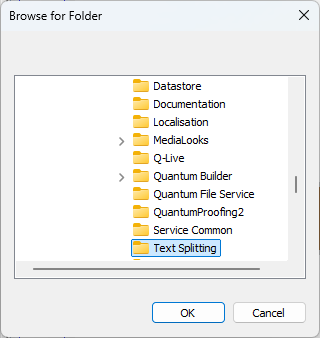

After Import has been pressed select the Text Splitting folder. Using the example files go to the folder saying Text Splitting:
Wincaps Q4 will import the text splitting files, displaying a progress bar
An "Import Successful" message will be displayed:
Click the Text Splitting->Configure button and configure the curves and weights as described here
The text splitting files have now been imported and configured successfully for the chosen language. If all three Text Splitting buttons are red...
.. and the Text Splitting icon on the menu can be toggled between
and
, then Text Splitting is loaded and enabled.
The above steps should be repeated for each different language you wish to subtitle in.
Export
Once they have been imported into the DataStore, you cannot view or edit the text splitting files directly. To edit them, you will first need to export them to a disk folder using the Text Splitting->Export button. After making your changes, you can re-import them using the same process as described above.
If the text splitting files have not yet been imported for a particular language, the Text Splitting->Configure button will be disabled.
